n-PRO-3DP
ni-PRO-3DP
ni-PRO-3DP
ni-PRO-3DP is a motherboard from the n-Blocks family especially suitable for the control of small and medium sized 3D printers/CNC/Laser.
1. Overview
ni-PRO-3DP is a motion controll board that is integrated with the mighty function of n-Blocks-PRO. The most attractive feature of this board is the streamlined interfaces, which help us to avoid the unnecessary troubles in handling the multiple motors, heaters, fans, end-stop switches, thermistors and sensors. Compact layout design allow us to integrate all required functionality in small space. The versatile screw-terminals, support simple setup for all sort of stepping-motor/motion/power applications.
Applications
- CNC milling
- Laser cutting
- 3D printing or any Industrial or commercial custom robotic control application.
Main Features Of The Board
- Different processor can be integrated by plugging nBlocksPRO boards for LPC1768, STM32F103,F401,…
- Many options of StepsticK stepping-motor drivers can be used, including Super quiet Silent-Stepsticks
- Convenient for users to DIY and secondary development
- Four Hirose DF30-series 60-pin low profile connectors
- n-DAP can be integrated for convenient firmware development/Debugging
- Modular, event-driven design, allowing to add functionality easily, when used with nBlocksStudio
- Smoothieware compatibility
- Easy to use and configure.
- Smooth, jerk-free motion and enabling higher speeds
- Can be used for CNC milling, laser cutting, and 3D printing
- SD-Card support for configuration and executing G-code
- Composite USB Mass Storage + Serial interface to host

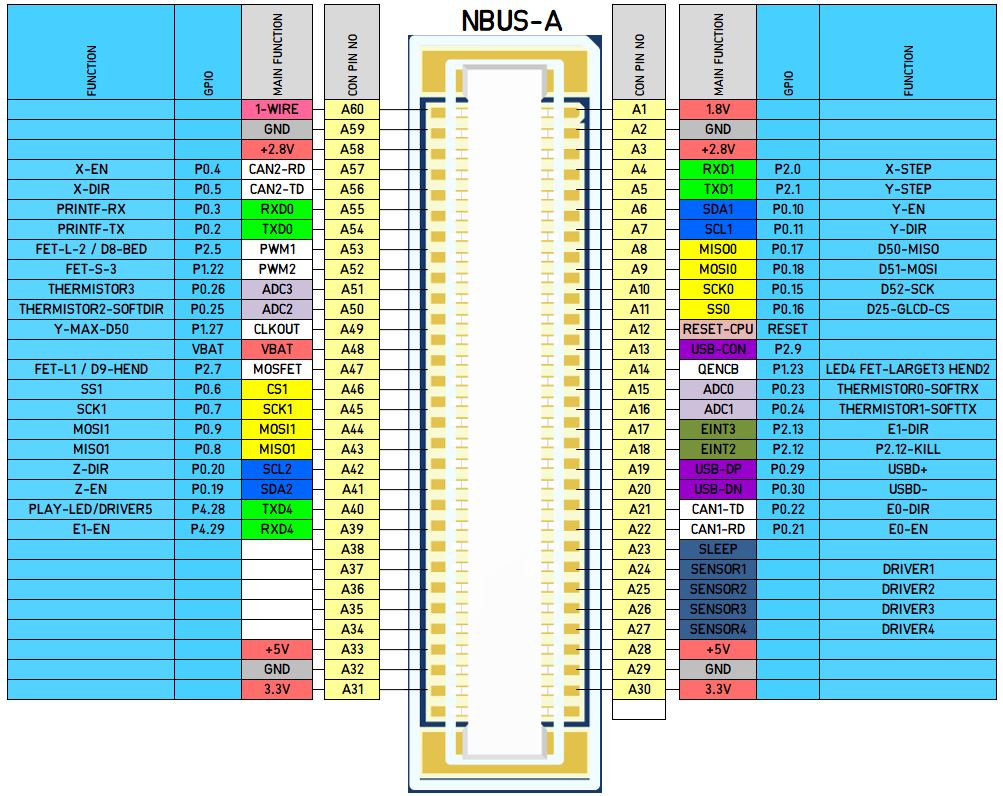

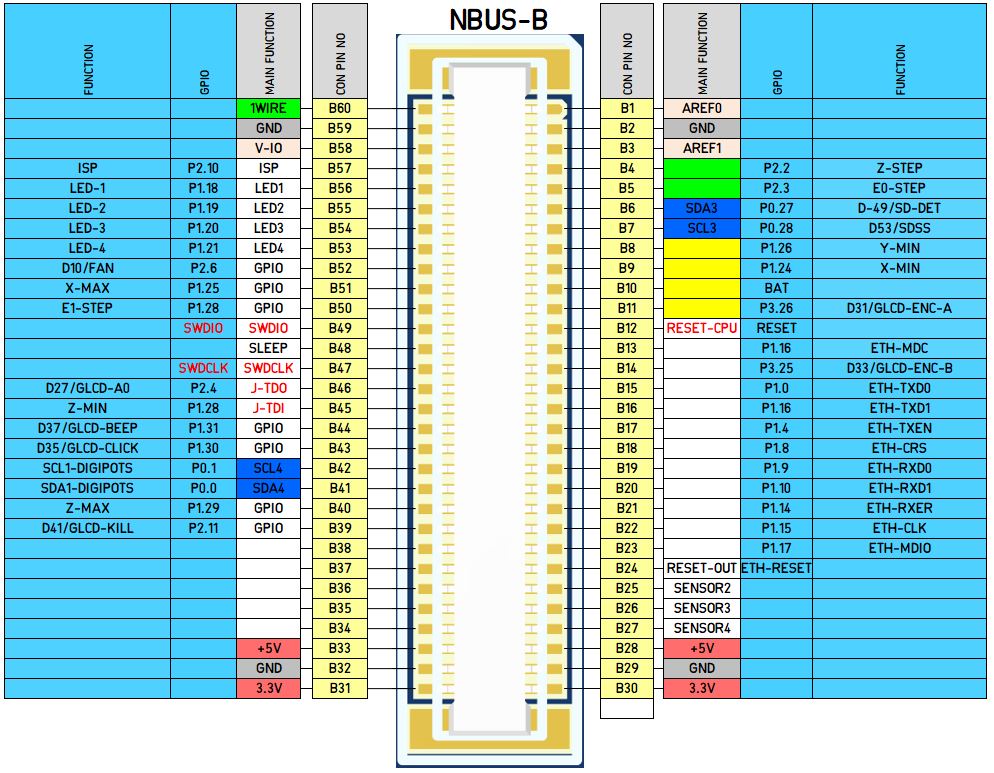

Board Pinout
n-PRO-3DP is a PERIPHERAL board with four Hirose DF30-series 60-pin low profile connectors at top side,
